[jsword-devel] Core build documentation

[DM Smith]

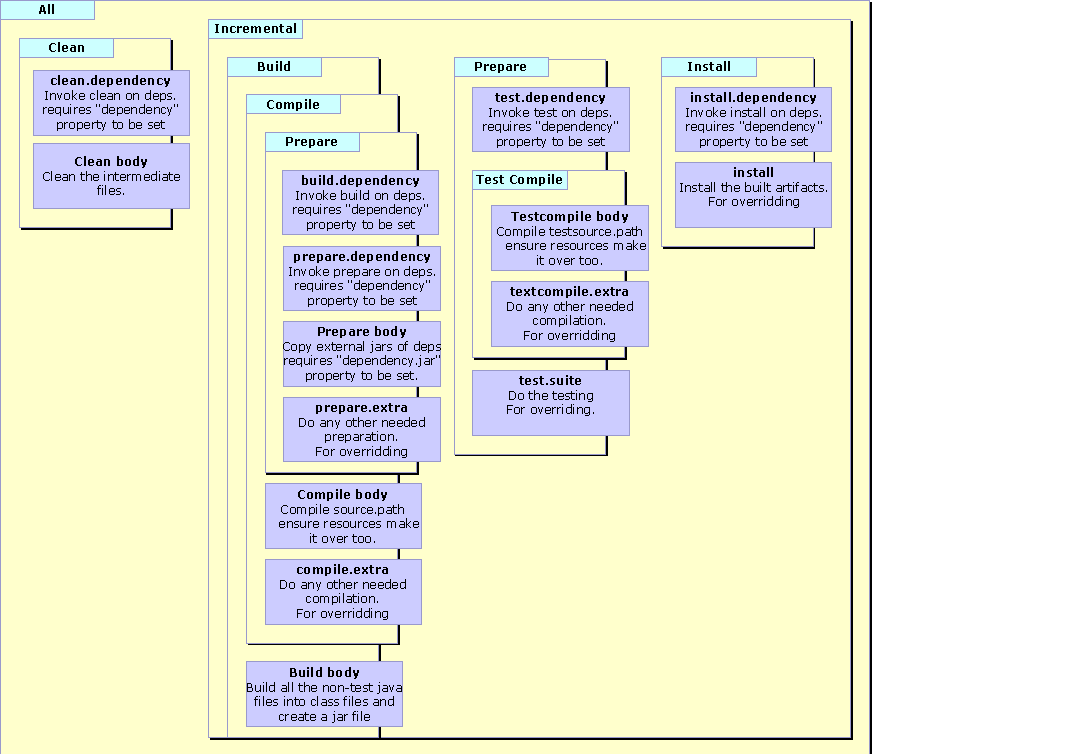

I have attached a different view of the build t show the order of
events. It is a containment diagram that flows from left to right.

It may also be helpful.

The document is on Open Office format. A png is also attached.

Joe Walker wrote:

>
> Hi,
>
> I realized that I didn't really understand the core.xml "base class" ant
> build file. So I wrote a very quick document in OpenOffice describing
> the targets and how they relate to each other, mostly so I understand
> but it might help others.
>
> I'm posting it (and a png export) because I think that some of the
> dependencies are wrong. The arrows show either "depends" attributes or
> "antcall" elements. There has been no attempt to show ordering.
>
> I suspect that test should depend on compile and that prepare should
> depend on init.
>
> Joe.

-------------- next part --------------
A non-text attachment was scrubbed...
Name: core-targets-2.sxd
Type: application/vnd.sun.xml.draw
Size: 8414 bytes
Desc: not available
Url : http://www.crosswire.org/pipermail/jsword-devel/attachments/20040814/da45ac45/core-targets-2-0001.sxd
-------------- next part --------------
A non-text attachment was scrubbed...
Name: core-targets-2.png
Type: image/png
Size: 32424 bytes
Desc: not available
Url : http://www.crosswire.org/pipermail/jsword-devel/attachments/20040814/da45ac45/core-targets-2-0001.png
